D 20Q

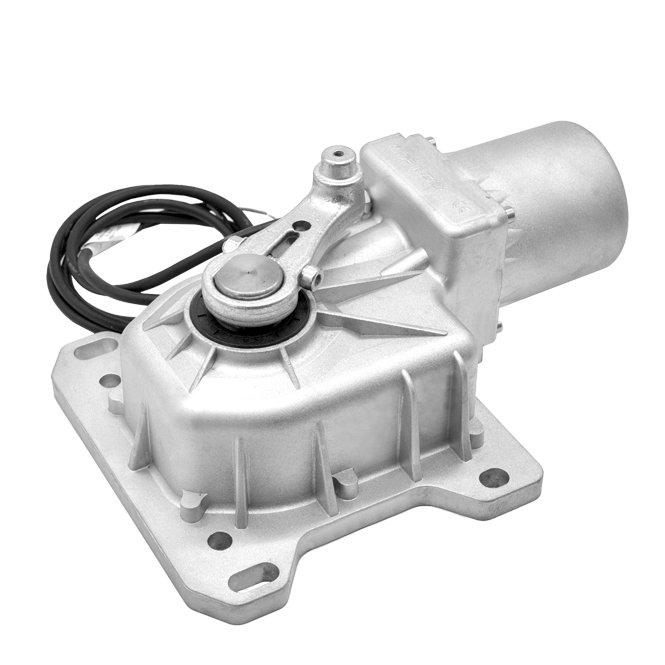

D 20Q Underground motor
Power supply: 230Vac
Maximum wing length: 2.5m
Maximum wing weight: 500 kg
Power consumption: 1.4A
Thermal cut-out: 120°
Operating temperature: -20° to +55°
Protection rating: IP67
Capacitor: 12.5µF
Motor cable: 2 metres
Motor weight 10 Kg
Opening time 90° 16 sec
Maximum pressure force: Adjustable 500-3000N
Unlocking with key
- Gear motor made with cast aluminium housing;
- Steel and cast iron gears.
- Maximum silent operation;
- Powerful electric motor;
- Mechanical parts lubricated with lithium grease to protect against corrosion, oxidation and rust;
- 100° opening
- No electric lock required (for gate wings up to 1.8 m);
This motor replaces type D20 /02-21
Motor = compatible with Came Frog
